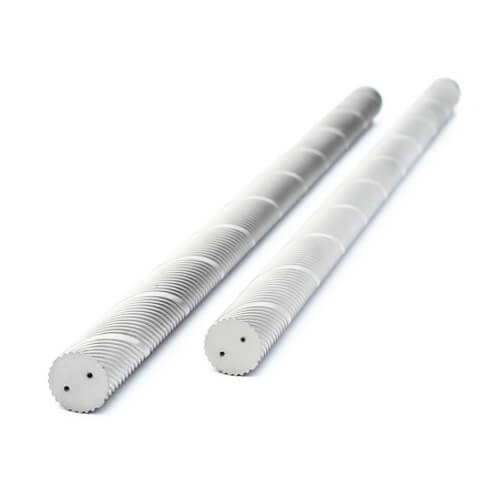

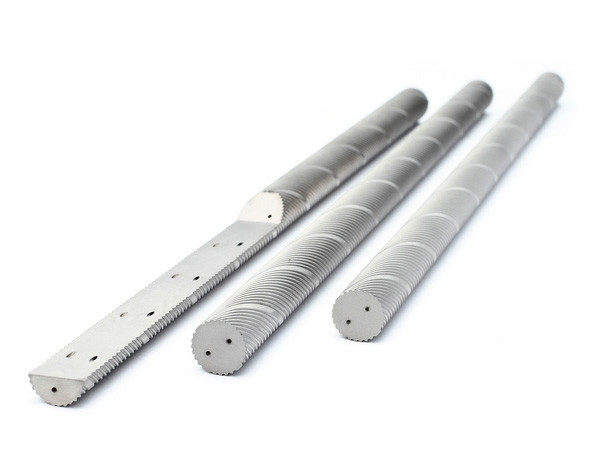

İki Helix Soğutucu Deliği ile Sinterlenmiş Katı Çimentolu Karbür Çubuklar
| unground | Yer h6 | L Tol. 5,0 | TK | Tol. | d | Tol. | zift | |
D | Tol. | |||||||
| 6.3 | + 0.4 / + 1.0 | 6 | 330 | 2.7 | 0.2 ± | 0.80 | 0.15 ± | 32.65 |
| 7.3 | 7 | 330 | 3.5 | 1.00 | 38.09 | |||
| 8.3 | 8 | 330 | 3.4 | 1.00 | 43.53 | |||
| 9.3 | 9.0 | 330 | 4.5 | 0.3 ± | 1.40 | 48.97 | ||
| 10.3 | 10.0 | 330 | 4.8 | 1.30 | 54.41 | |||
| 11.3 | + 0.4 / + 1.2 | 11.0 | 330 | 4.9 | 0.4 ± | 1.40 | 59.86 | |
| 12.3 | 12.0 | 330 | 6.3 | 1.70 | 65.30 | |||
| 13.3 | 13.0 | 330 | 6.1 | 1.75 | 0.20 ± | 70.74 | ||
| 14.3 | 14.0 | 330 | 6.7 | 1.80 | 76,18 | |||
| 15.3 | 15.0 | 330 | 7.3 | 1.75 | 81.82 | |||
| 16.3 | + 0.4 / + 1.4 | 16.0 | 330 | 8 | 2.00 | 87,06 | ||
| 17.3 | 17.0 | 330 | 8.5 | 1.75 | 0.25 ± | 92,50 | ||
| 18.3 | 18.0 | 330 | 9.0 | 2.30 | 97,95 | |||
| 19.3 | 19.0 | 330 | 9.7 | 2.00 | 103,39 | |||
| 20.3 | 20.0 | 330 | 10.0 | 0.5 ± | 2.50 | 108,83 | ||
