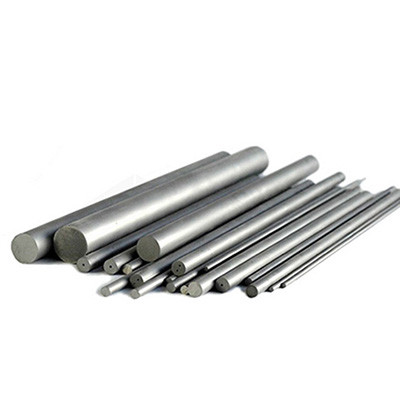

ISO9001 SGS Taşlama Tungsten Karbür Çubuk Boşlukları, Püskürtme Delikli K10
Açıklama
| Boyut | Standart veya özelleştirilmiş |
| Marka | G-Beyaz |
| Teslimat süresi | 7-15 gün |
| paket | Plastik kutu |
| Ödeme türü | T / T, Western Union, Paypal |
| Ana marketler | Türkiye, İsrail, ABD, Pakistan, Mısır, Almanya, İran, Tayland, Hindistan, vb |
sınıf
| sınıf | ISO aralığı | Kobalt% | Yoğunluk g / cm3 |
Sertlik İHD |
TRS N / mm2 |
| YG8 | K30 | 8 | 14.80 | 89.5 | 2200 |
| YG6 | K20 | 6 | 14.95 | 90.5 | 1900 |
| YG6X | K10 | 6 | 14.95 | 91.5 | 1800 |
| YL10.2 | K30 | 10 | 14.50 | 91.8 | 2400 |
| YG13X | K30-K40 | 13 | 14.30 | 89.5 | 2600 |
| YG15 | K40 | 15 | 14.00 | 87,5 | 280 |
Resimler
Boyut
Katı Çubuklar (Metrik) 330mm
| unground | h6 |
L |
Tol. |
unground | h6 |
L |
Tol. |
||
| D | Tol. | D | Tol. | ||||||
| Ø2.2 | + 0.3 / + 0 | 2.0 | 330 | + 5 / + 0 | Ø17.2 | + 0.3 / + 0 | 17 | 330 | + 5 / + 0 |
| Ø3.2 | + 0.3 / + 0 | 3.0 | 330 | + 5 / + 0 | Ø18.2 | + 0.3 / + 0 | 18 | 330 | + 5 / + 0 |
| Ø4.2 | + 0.3 / + 0 | 4,0 | 330 | + 5 / + 0 | Ø19.2 | + 0.3 / + 0 | 19 | 330 | + 5 / + 0 |
| Ø5.2 | + 0.3 / + 0 | 5.0 | 330 | + 5 / + 0 | Ø20.2 | + 0.3 / + 0 | 20 | 330 | + 5 / + 0 |
| Ø6.2 | + 0.3 / + 0 | 6 | 330 | + 5 / + 0 | Ø21.2 | + 0.3 / + 0 | 21 | 330 | + 5 / + 0 |
| Ø7.2 | + 0.3 / + 0 | 7 | 330 | + 5 / + 0 | Ø22.2 | + 0.3 / + 0 | 22 | 330 | + 5 / + 0 |
| Ø8.2 | + 0.3 / + 0 | 8 | 330 | + 5 / + 0 | Ø23.2 | + 0.3 / + 0 | 23 | 330 | + 5 / + 0 |
| Ø9.2 | + 0.3 / + 0 | 9.0 | 330 | + 5 / + 0 | Ø24.2 | + 0.3 / + 0 | 24 | 330 | + 5 / + 0 |
| Ø10.2 | + 0.3 / + 0 | 10.0 | 330 | + 5 / + 0 | Ø25.2 | + 0.3 / + 0 | 25 | 330 | + 5 / + 0 |
| Ø11.2 | + 0.3 / + 0 | 11.0 | 330 | + 5 / + 0 | Ø26.2 | + 0.3 / + 0 | 26 | 330 | + 5 / + 0 |
| Ø12.2 | + 0.3 / + 0 | 12.0 | 330 | + 5 / + 0 | Ø27.2 | + 0.3 / + 0 | 27 | 330 | + 5 / + 0 |
| Ø13.2 | + 0.3 / + 0 | 13.0 | 330 | + 5 / + 0 | Ø28.2 | + 0.3 / + 0 | 28 | 330 | + 5 / + 0 |
| Ø14.2 | + 0.3 / + 0 | 14.0 | 330 | + 5 / + 0 | Ø29.2 | + 0.3 / + 0 | 29 | 330 | + 5 / + 0 |
| Ø15.2 | + 0.3 / + 0 | 15.0 | 330 | + 5 / + 0 | Ø30.2 | + 0.3 / + 0 | 30 | 330 | + 5 / + 0 |
| Ø16.2 | + 0.3 / + 0 | 16.0 | 330 | + 5 / + 0 | |||||
İki düz soğutucu kanal çubuğu, Azaltılmış TK
| unground | Zemin h6 |
TK |
Tol. |
D |
Tol. |
L |
bir |
|
D |
Tol. |
|||||||
| 6.3 | + 0.3 / 0 |
6 | 1.5 | 0 / -0.20 | 0.80 | ± 0.15 |
330 |
0.15 |
| 7.3 | 7 | 1.5 | 0.80 | 0.15 | ||||
| 8.3 | 8 | 2.6 | 0 / -0.30 |
1.00 | 0.15 | |||
| 9.3 | 9.0 | 2.6 | 1.00 | 0.20 | ||||
| 10.3 | 10.0 | 2.6 | 1.00 | 0.20 | ||||
| 11.3 | + 0.4 / 0 |
11.0 | 3.5 | 1.20 | 0.28 | |||
| 12.3 | 12.0 | 3.5 | 1.20 | 0.30 | ||||
| 13.3 | 13.0 | 3.5 | 1.20 | 0.34 | ||||
| 14.3 | 14.0 | 5.0 | 1.50 | 0,37 | ||||
| 15.3 | 15.0 | 5.0 | 1.50 | 0.40 | ||||
| 16.3 | 16.0 | 5.0 | 1.50 | ± 0.20 |
0.40 | |||
| 17.3 | + 0.5 / 0 |
17.0 | 6.2 | 2.00 | 0,47 | |||
| 18.3 | 18.0 | 6.2 | 2.00 | 0.50 | ||||
| 19.3 | 19.0 | 6.2 | 2.00 | 0.50 | ||||
| 20.3 | 20.0 | 6.2 | 0 / -0.40 | 2.00 | ± 0.30 | 0.50 | ||
30 ° İki Helisel Soğutma Suyu Kanalları (Tip HE-30 °)
| unground | Zemin h6 |
L Tol. Tol. +5.0 5,0 |
TK |
Tol. |
D |
Tol. |
Saha |
|
| D | Tol. | |||||||
| 6.3 | + 0.4 / + 1.0 |
6 | 330 | 2.7 | ± 0.2 |
0.80 | ± 0.15 |
32.65 |
| 7.3 | 7 | 330 | 3.5 | 1.00 | 38.09 | |||
| 8.3 | 8 | 330 | 3.4 | 1.00 | 43.53 | |||
| 9.3 | 9.0 | 330 | 4.5 | ± 0.3 | 1.40 | 48.97 | ||
| 10.3 | 10.0 | 330 | 4.8 | 1.30 | 54.41 | |||
| 11.3 | + 0.4 / + 1.2 |
11.0 | 330 | 4.9 | ± 0.4 |
1.40 | 59.86 | |
| 12.3 | 12.0 | 330 | 6.3 | 1.70 | 65.30 | |||
| 13.3 | 13.0 | 330 | 6.1 | 1.75 | ± 0.20 |
70.74 | ||
| 14.3 | 14.0 | 330 | 6.7 | 1.80 | 76,18 | |||
| 15.3 | 15.0 | 330 | 7.3 | 1.75 | 81.82 | |||
| 16.3 | + 0.4 / + 1.4 |
16.0 | 330 | 8 | 2.00 | 87,06 | ||
| 17.3 | 17.0 | 330 | 8.5 | 1.75 | ± 0.25 |
92,50 | ||
| 18.3 | 18.0 | 330 | 9.0 | 2.30 | 97,95 | |||
| 19.3 | 19.0 | 330 | 9.7 | 2.00 | 103,39 | |||
| 20.3 | 20.0 | 330 | 10.0 | ± 0.5 | 2.50 | 108,83 | ||
